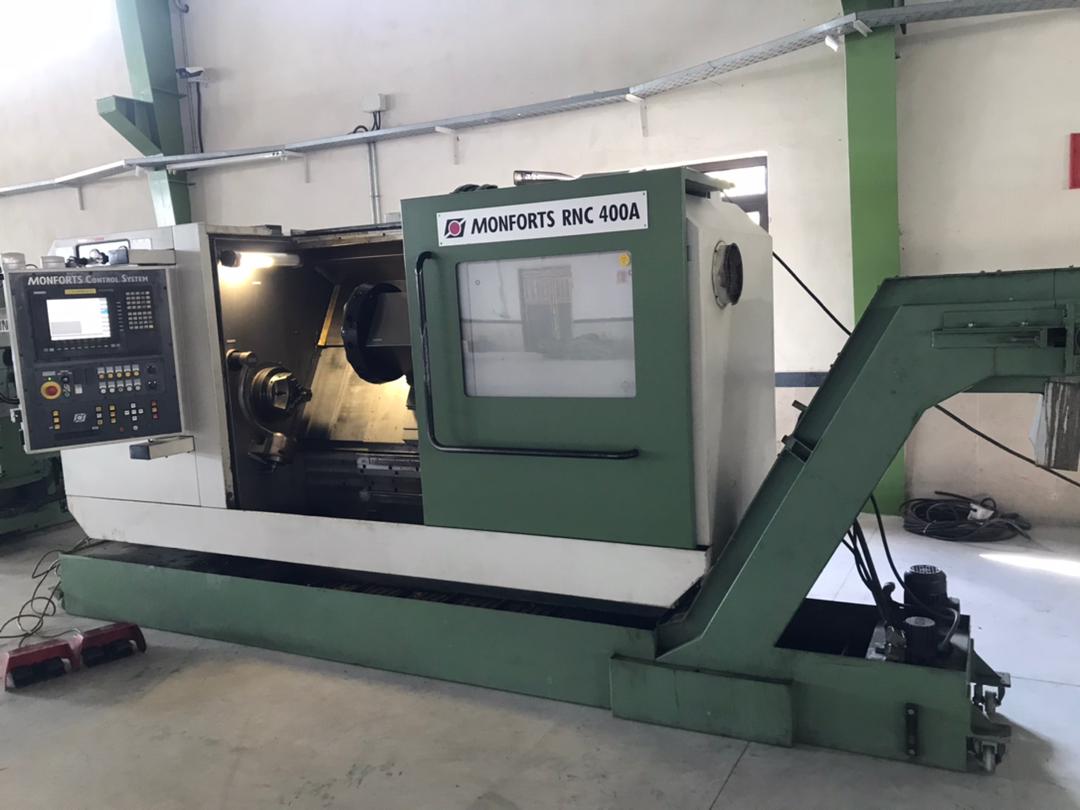

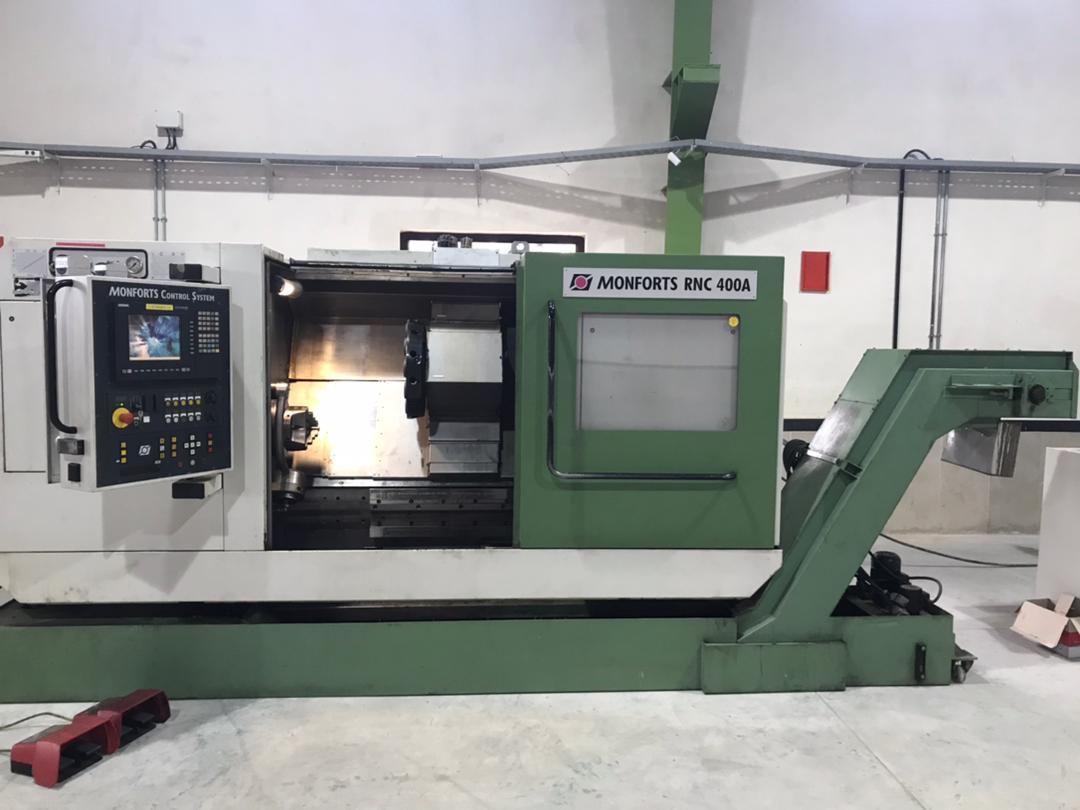

تصاویر ماشین تراش MONFORTS RNC 400A
مشخصات فنی ماشین تراش MONFORTS RNC 400A
Description
CNC lathe
MONFORTS RNC 400 A
Year of construction 2001
CNC control SIEMENS EINUMERIK 840 D
Technical specifications
X 250 mm travel
Z 620 mm travel
Swing diameter over slide 280 mm
Swing diameter over bed 410 mm
Spindle passage 65 mm
Speed range 30 - 4000 rpm
Power: 26.5 kW
Spindle holder A6
Tool carrier (X / Z) disc turret
Tool holder VDI 40
Number of driven tools 12
Machine weight about 7.5 tons
Specifications
| Turning length | 1000 mm |
|---|---|
| Turning Ø | 400 mm |
| Ø above the bed | 410 mm |
| Ø above transversing slide | 280 mm |
| Length between centers | 1000 mm |
| X-axis | 250 mm |
| Z-axis | 620 mm |
| Number of tools on turret | 12 |
| Number of rotating tools | 12 |
| Turning speed | 4000 rpm |
| Spindle motor power | 26.5 kW |
| Tailstock | yes |
| Bar feeder | no |
| Weight | 7500 kg |
| State | good |
